GreenTouch as an Open Frame Touch Screen Monitor Manufacturer: Kiosk Integration, Mounting, and EMC Compliance

Shenzhen, Guangdong Sep 24, 2026 (Issuewire.com) - Integrating interactive touch technology into custom self-service terminals, payment kiosks, and industrial machine consoles requires display hardware that fits seamlessly into external cabinetry. Sourcing from an established open frame touch screen monitor manufacturer enables system designers to bypass the mechanical compromises and aesthetic limitations of standard boxed desktop displays. Open-frame monitors are engineered specifically for embedded installation, featuring bare metal perimeter chassis, multi-axis side mounting flanges, and durable front sealing options. Partnering with an experienced manufacturer like GreenTouch ensures equipment builders achieve precise dimensional alignment, superior ingress protection, and dependable electromagnetic compliance across demanding public and industrial installations.

Why Open-Frame Architecture Fits Custom Kiosk Enclosures

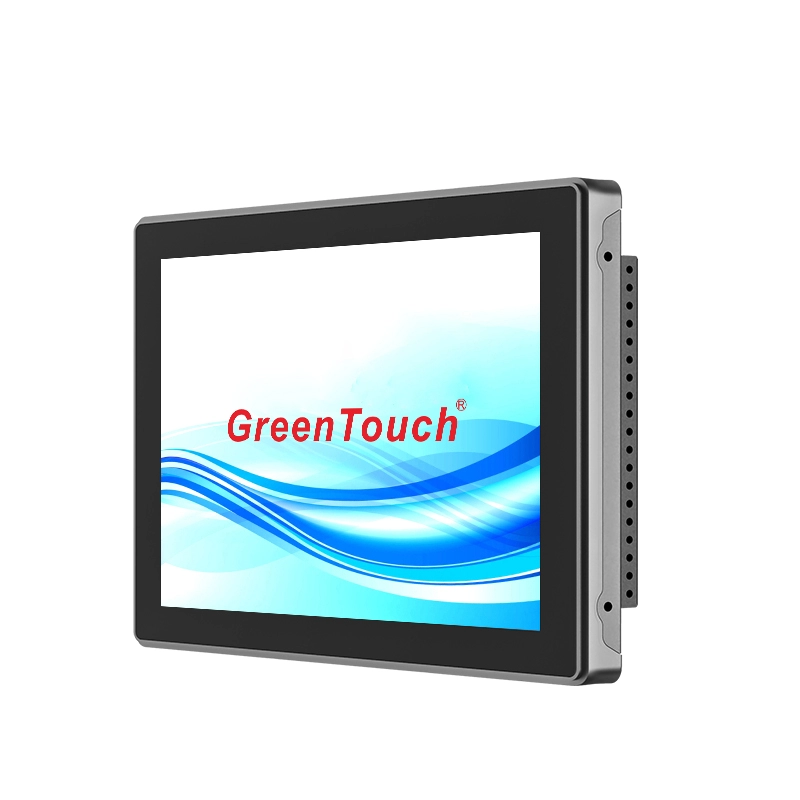

Custom self-service kiosks and industrial enclosures feature bespoke sheet metal cutouts, customized brand facades, and tight internal depth envelopes. Standard desktop monitors feature bulky plastic bezels, fixed stands, and awkward cable exit points that complicate internal cabinet assembly. Open-frame architecture provides a streamlined, bare-metal enclosure that mounts directly against the rear of the cabinet facade. This flush integration creates a modern, seamless front appearance while maximizing internal cabinet volume for ticket printers, card readers, bill acceptors, and embedded host computers.

Furthermore, open-frame construction minimizes total terminal weight and simplifies field service. Because the monitor mounts to internal structural rails rather than relying on external desktop brackets, mechanical stress distributes evenly throughout the kiosk frame. Rigid cold-rolled steel or aluminum chassis protect the internal LCD panel and timing controllers against mechanical twisting, cabinet torsion, and transit vibration.

If an active display requires maintenance, technicians can access the unit from the rear without dismantling the entire front kiosk facade. This serviceability reduces system downtime and operational support overhead for globally distributed kiosk deployments.

Match the Open-Frame Mechanics to the Kiosk CutoutSide-Mount Flanges and Adjustable Bracket Positioning

Flawless mechanical kiosk touch screen integration relies on versatile mounting hardware. GreenTouch open-frame monitors incorporate adjustable L-shaped side brackets with slotted mounting apertures. These brackets fasten along the perimeter of the monitor chassis and bolt directly to internal kiosk structural ribs or studs.

These slotted channels provide multi-axis adjustability in horizontal, vertical, and depth dimensions. Assembly technicians can micro-adjust the monitor position to align the active touch glass flush with the cabinet opening down to fractions of a millimeter. This eliminates unsightly gaps, misaligned borders, and irregular bezel margins.

This mechanical flexibility ensures consistent front alignment across varying cabinet sheet metal thicknesses, spanning 1.5 mm to 3.0 mm, without mechanical binding or distortion. Rear clamping bars apply uniform forward pressure, securing the display firmly in place.

Rear VESA Architecture for Sub-Chassis Rigidity

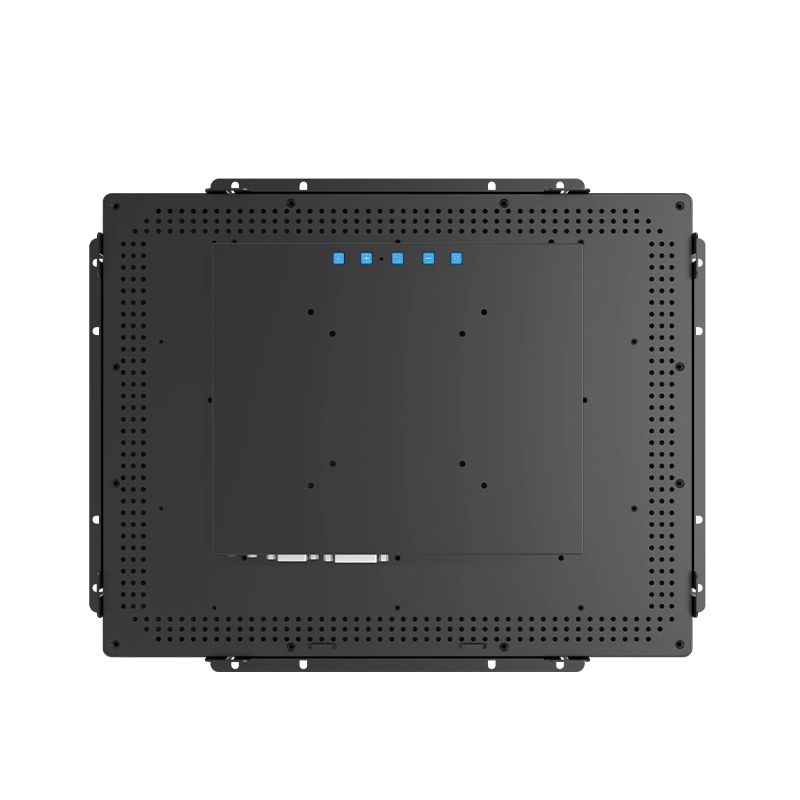

In addition to perimeter side flanges, open-frame displays incorporate standardized dual rear VESA-compliant hole matrices (75x75 mm and 100x100 mm). These mounting points allow system integrators to secure secondary support brackets, internal articulating arms, or compact computing modules directly to the display chassis, isolating the front touch glass from cabinet vibration.

Integrate Optical Treatments for Challenging Lighting

Self-service kiosks frequently operate in high-ambient lighting environments, such as sunlit retail concourses, transportation hubs, and outdoor ticketing booths. Bare glass surfaces reflect overhead spotlights and ambient glare, washing out display contrast and frustrating users. GreenTouch provides specialized optical treatments, including chemically etched anti-glare (AG) surface diffusion and multi-layer anti-reflective (AR) magnetron sputtering.

Where maximum visual contrast is required, direct optical bonding fills the internal air gap between the touch sensor and the LCD panel with optical clear resin. Optical bonding eliminates internal reflections, boosts visual contrast by up to 400%, and prevents internal condensation in fluctuating humid environments.

Combining AR sputtering with index-matched optical clear resin elevates light transmittance above 90%, ensuring crisp text, sharp user interface graphics, and clear readability even under intense ambient light.

Engineer Grounding and Cable Paths for EMC Compliance

Self-service kiosks pack dense electronic sub-assemblies into confined metal enclosures. Power supplies, thermal printers, bill acceptors, and cellular modems generate electromagnetic noise that can radiate into touch digitizer circuits. Unshielded cables and improper grounding can cause erratic cursor jumps, phantom touches, or complete touch controller lockups.

GreenTouch open-frame monitors incorporate integrated star-grounding studs, multi-conductor shielded internal cabling, and ferrite chokes. Utilizing conductive copper tape, internal chassis components are bonded directly to the external metal frame, creating an effective Faraday cage that shields sensitive capacitive controllers.

This circuitry prevents user static sparks from damaging internal electronics, easily satisfying EN 61000-4-2 Level 4 electrostatic discharge (ESD) standards up to 8 kV contact and 15 kV air discharge.

Verify Thermal Dissipation and Internal Convection

Enclosed kiosk cabinets present significant thermal challenges. High-brightness backlights, power supplies, and host processors generate heat that accumulates inside sealed enclosures. Published case studies confirm that commercial kiosk deployments across high-ambient installations benefit from fanless convection channels. Heavy-gauge aluminum rear covers act as passive heat sinks, conducting heat away from sensitive display components.

Validate Prototypes with Real Kiosk Sheet Metal

Engineering teams evaluate CAD models through physical pilot prototypes before committing to mass production. Installing a prototype open-frame monitor into an actual kiosk chassis verifies bracket fit, cable routing clearances, thermal airflow, and touch responsiveness before mass production begins.

FAQ about Open Frame Touch Screen Monitors

Kiosk designers and equipment builders regularly evaluate these practical technical questions during open-frame monitor integration.

How Does an Open-Frame Monitor Maintain Front Ingress Sealing?

Open-frame monitors utilize perimeter silicone gaskets compressed between the monitor flange and the rear cabinet cutout, creating a watertight barrier that achieves IP65 front ingress protection against dust and liquid spills.

Can Open-Frame Monitors Be Mounted Vertically in Portrait Orientation?

Yes. Industrial open-frame monitors support both horizontal and vertical orientations, featuring wide viewing angle IPS panels (178°/178°) that maintain uniform color and contrast in either configuration.

What Video Interfaces Are Typical on Industrial Open-Frame Monitors?

Standard configurations include HDMI, DisplayPort, and analog VGA ports to accommodate modern digital controllers and legacy computing systems.

Coordinate Your Kiosk Design with GreenTouch

Executing a flawless kiosk hardware program requires harmonizing enclosure sheet metal, optical treatments, and electronic grounding. GreenTouch delivers comprehensive OEM and ODM support, from custom bracket design to cleanroom optical bonding. System integrators and kiosk manufacturers are invited to submit project specifications directly at https://www.greentouch.com.cn/ for engineering review and prototype sampling.
